Black V Type Chevron Pattern Conveyor Belt Heat Resistant Belts For Continuous Conveying

100 Meters
MOQ
USD20-90/Meter
Price
Black V Type Chevron Pattern Conveyor Belt Heat Resistant Belts For Continuous Conveying
Features Gallery Product Description Ratings & Review Chat Now
Features
Specifications
Belt Thickness: 6-80mm
Belt Width: 300-2500mm
Tensile Strength: 8-25 MPa
OEM: Acceptable
Factory: Yes
Application: Bulk Material Handling
Basic Infomation
Place of Origin: China
Brand Name: MWIN
Certification: ISO9001
Model Number: EP200
Payment & Shipping Terms
Packaging Details: Packed in PP film or customized
Delivery Time: 7-25 days
Payment Terms: T/T,L/C At sight
Supply Ability: 2000 Meters/Month
Product Description
Black V Type Chevron Pattern Conveyor Belt Heat Resistant Belts For Continuous Conveying
The patterned rubber conveyor belts are specialized belts with raised rubber patterns vulcanized onto the base belt. They are primarily designed to prevent material slippage and enable inclined conveying (up to 40°–60°), which is impossible with standard smooth belts. The patterns increase friction, stabilize materials, and improve efficiency in mining, agriculture, construction, and logistics.
Advantages

Anti-slip: Enables steep-incline conveying

Versatility: Handles bulk, bagged, granular, & powdered materials

Durability: One-piece vulcanization; strong pattern bonding

Efficiency: Reduces spillage; increases throughput

Customization: Patterns/ heights tailored to material & angle

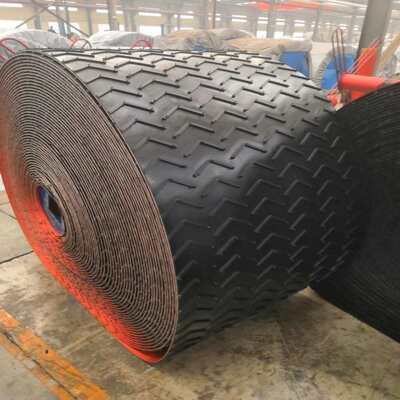

Black V Type Chevron Pattern Conveyor Belt Heat Resistant Belts For Continuous Conveying 0
Technical Specifications
Rubber Cover Grade Tensile Strength (Mpa) Elongation at Break (%) Abrasion (mm³)
H 24.0 450 120
D 18.0 400 100
L 15.0 350 200
DIN 22102 Standards:
Standards Tensile Strength (Mpa) Elongation at Break (%) Abrasion (mm³) Cover to Ply N/mm (≤1.5mm) Cover to Ply N/mm (>1.5mm) Ply to Ply N/mm
DIN 22102-Z 15 350 250 3.5 4.5 5
DIN 22102-W 18 400 90 3.5 4.5 5
DIN 22102-Y 20 400 150 3.5 4.5 5
DIN 22102-X 25 450 120 3.5 4.5 5
AS 1332 Standards:
Standards Tensile Strength (Mpa) Elongation at Break (%) Abrasion (mm³) Cover to Ply N/mm (≤1.9mm) Cover to Ply N/mm (>1.9mm) Ply to Ply N/mm
AS 1332-N17 17 400 200 4 4.8 6
AS 1332-M24 24 450 125 4 4.8 6
We also manufacture belts with cover grades compliant with international standards including RMA, SABS 1173/2000, IS 1891, BS 490, JIS K 6322, and others.
Packaging & Shipping
Packed in PP film wrapping with secure belt fastening for optimal protection during transit. Customized packaging options available in steel cages, pallets, or according customer request.

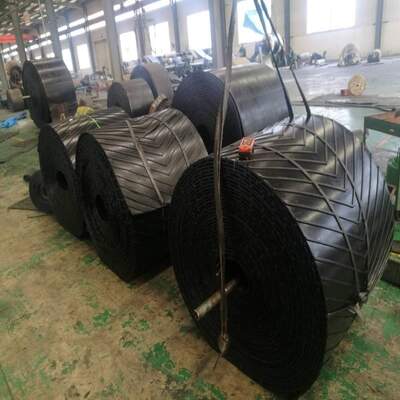

Black V Type Chevron Pattern Conveyor Belt Heat Resistant Belts For Continuous Conveying 1
Company Profile
Qingdao MWin Industry and Trade Company is a professional enterprise specializing in the production of various categories and applications of rubber conveyor belts, rubber seals, and other rubber products.
With extensive production, sales, and export experience, our customer base spans globally, earning us an excellent reputation. We maintain high quality standards and efficient service to fully comply with customer requirements and deliver qualified products.

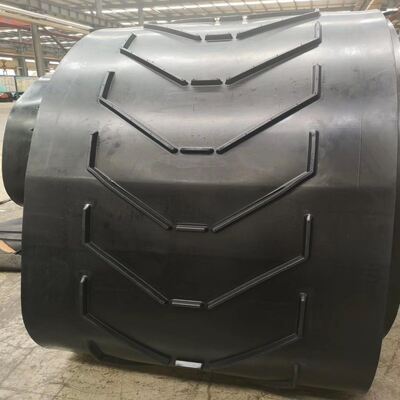

Black V Type Chevron Pattern Conveyor Belt Heat Resistant Belts For Continuous Conveying 2
