Black Heavy Duty Industrial Rubber Conveyor Belt For Bucket Elevator Conveyor System

100 Meters
MOQ
USD30-100/Meter
Price
Black Heavy Duty Industrial Rubber Conveyor Belt For Bucket Elevator Conveyor System
Features Gallery Product Description Ratings & Review Chat Now
Features
Specifications
Width: 300-2500mm
Thickness: 10-40mm
Tensile Strength: 8-25Mpa
Factory: Yes
OEM: Accept
Feature: Tear-Resistant, Heat-Resistant, Cold-Resistant, Wear-Resistant
Highlight:

black heavy duty conveyor belt

,

industrial rubber conveyor belt

,

bucket elevator conveyor system

Basic Infomation
Place of Origin: China
Brand Name: MWIN
Certification: ISO9001
Model Number: ST3500
Payment & Shipping Terms
Packaging Details: Packed in PP film or Export Package
Delivery Time: 10-25 days
Payment Terms: T/T,L/C At sight
Supply Ability: 10000 Meters per month
Product Description
Black Heavy Duty Industrial Rubber Conveyor Belt For Bucket Elevator Conveyor System
Product Introduction

The steel cord rubber conveyor belt is a high-performance, heavy-duty conveyor belt designed for long-distance, high-tension, and large-capacity material handling applications. Its core distinguishing feature is the use of steel cables as the primary tensile member, unlike traditional belts that use fabric plies (like polyester or nylon).

Design & Construction

MWIN steel cord belts feature a multi-layer composite structure optimized for extreme tensile loads and harsh operating conditions:

Steel Cord Reinforcement (Core Skeleton)
  • Material: High-tensile, galvanized/brass-coated steel cords (e.g., K6×7+1WS, K6×19+1WS) for superior corrosion resistance and rubber adhesion
  • Arrangement: Longitudinally parallel, evenly spaced cords with tension uniformity controlled to ±1% (far exceeding the industry standard of ±3%)
  • Strength Range: Tensile strength from ST630 up to ST5400 kN/m, supporting spans of several kilometers
  • Key Benefit: Provides near-zero elongation under load and exceptional resistance to flex fatigue
Rubber Compounds
  • Core Rubber: High-adhesion rubber matrix that fully encapsulates and bonds to steel cords, preventing delamination and cord corrosion
  • Top Cover Rubber: Wear-resistant, impact-absorbing compound (abrasion loss: 70-300 mm³) to withstand heavy, abrasive bulk materials
  • Bottom Cover Rubber: Low-rolling-resistance rubber for efficient power transmission on pulleys and idlers
  • Edge Rubber: Reinforced side rubber to protect against edge tearing and environmental ingress
Structural Variants

MWIN offers specialized constructions for demanding applications:

  • Standard Type: General-purpose for most heavy-duty conveying
  • Rip-Resistant Type: Embedded transverse steel cords or anti-tear sensors to prevent catastrophic longitudinal tearing
  • Impact-Resistant Type: Thickened top cover and shock-absorbing core for high-drop, coarse material handling
  • Fire-Retardant Type: Complies with MT147/MT668 for underground mining and high-fire-risk zones

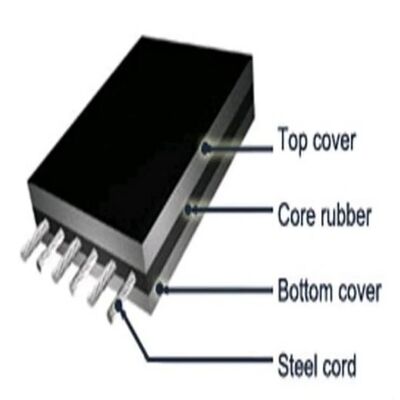

MWIN Steel Cord Conveyor Belt construction and design features
Key Technical Specifications (MWIN Standard)
Parameter Value Range Notes
Belt Width 300 mm - 2500 mm Custom widths available
Belt Thickness 10 mm - 40 mm Depends on cover grade and cord size
Steel Cord Diameter 3.0 mm - 11.5 mm Matched to tensile class
Tensile Strength (ST Rating) ST800 - ST5400 kN/m Industry-standard designation
Elongation at Break ≤ 0.2% Minimal stretch under operating load
Abrasion Resistance (DIN) 80 - 400 mm³ Customizable for highly abrasive materials
Operating Temperature -40°C to +200°C Special grades for extreme temps
Length per Roll 10 m - 200 m Unlimited endless splicing on-site
Standards GB/T 9770, DIN 22131, AS 1333, JIS K 6369 Global compliance
MWIN Steel Cord Conveyor Belt technical specifications and performance data
Applications
  • Mining: Coal, iron ore, copper, bauxite, and aggregates
  • Cement & Building Materials: Clinker, limestone, gypsum, and raw materials
  • Ports & Terminals: Long-distance ship loading/unloading of bulk cargo
  • Power Plants: Coal and ash handling
  • Metallurgy: Sinter, ore, and slag conveyance
  • Quarries & Aggregates: High-abrasion stone and gravel transport

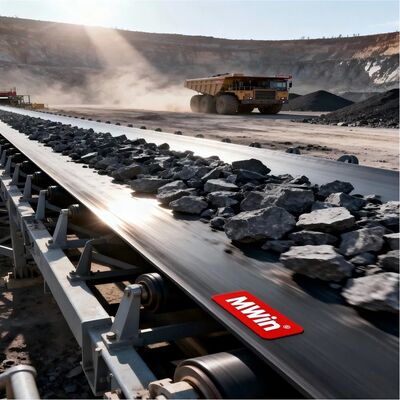

MWIN Steel Cord Conveyor Belt applications in industrial settings

FAQ

Q1: How soon can we get a reply after we send you an inquiry?

A: The reply will be made within 2 hours after receiving the inquiry.

Q2: Are you a direct manufacturer or a trading company?

A: We have our own factory and international trade department, handling both production and sales directly.

Q3: What products can you provide?

A: We produce ST cord conveyor belts, sensor conveyor belts, pip conveyor belts, anti-tear conveyor belts, EPDM conveyor belts, high temperature resistant conveyor belts, heat resistant conveyor belts, fire resistant conveyor belts, EP conveyor belts, NN conveyor belts, SW fabric conveyor belts, cotton conveyor belts, chevron conveyor belts, rough top conveyor belts, oil resistant conveyor belts, chemical resistant conveyor belts, flat transmission belts, and rubber V belts.

Q4: What application fields are your products mainly involved in?

A: Primarily used for transportation tasks in metallurgy, chemical, cement, coking, steel and other industrial sectors.

Q5:What is the best way to store conveyor belts?

A: Conveyor belts should be stored in a cool, dry, and dark place, away from direct sunlight, rain, and chemicals. They should be kept in a rolled position (not folded) to prevent cracking or damage to the core. Avoid placing heavy objects on top of the rolls.

Q6:How does your company guarantee product quality?

A: We maintain complete physical and chemical testing equipment with a dedicated quality management team. All properties are controlled from raw material analysis through semi-finished products to finished product testing.

Q7:Can you customize the size and specifications of the belts?

A:Yes. We offer customized solutions based on your requirements. You can specify thewidth, length, cover thickness, color, and rubber properties(such as heat-resistant, oil-resistant, or flame-retardant) to match your specific conveyor system.

Q8: How to deliver goods to customers?

A: We primarily ship by sea from Qingdao port for convenience. For urgent shipments, air transport is available through the nearby international airport.
