Steel Cord Reinforcement Rubber Conveyor Belt Belt For Bulk Material Transport Systems

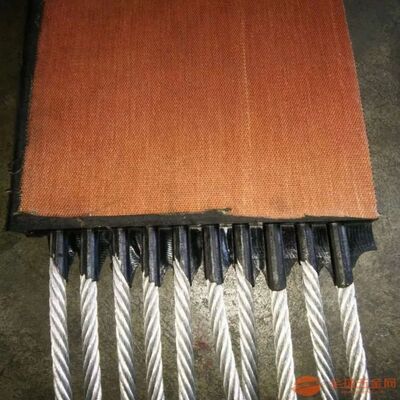

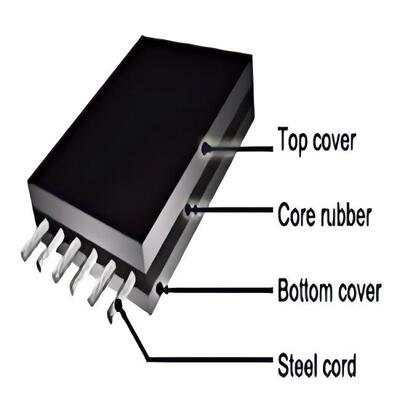

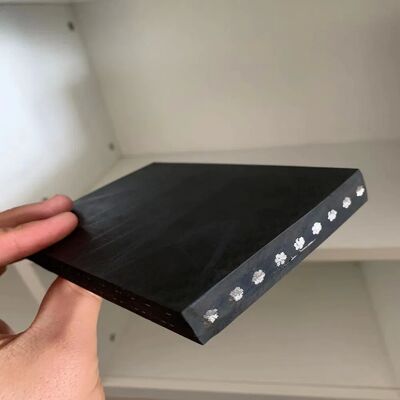

The steel cord rubber conveyor belt (also called wire rope core conveyor belt) is a heavy‑duty rubber reinforcement belt that uses high‑tensile galvanized steel cords as the load‑bearing skeleton, embedded in a rubber carcass. It is engineered for long‑distance, high load, high speed material transportation, widely applied in mining, coal, ports, metallurgy, power plants, and chemical industries.

• General Type: For ordinary bulk materials (coal, ore, sand); wear‑resistant, cost‑effective.
• Fire‑Retardant (FR) Type: For coal mines, tunnels, or high‑fire‑risk areas; meets ISO 340/EN 14973, anti‑static and flame‑resistant.
• Heat‑Resistant Type: For high‑temperature materials (sinter, clinker, hot ash); withstands 150–250°C.
• Cold‑Resistant Type: For low‑temperature environments (–40°C to –60°C); rubber remains flexible without cracking.
• Oil‑Resistant Type: For oily/greasy materials; resists oil penetration and swelling.
• Acid‑Alkali Resistant Type: For chemical plants, fertilizer, or corrosive materials.

• Ultra‑High Tensile Strength
  Withstands heavy loads (up to 10,000 N/mm), ideal for long‑distance lines (5–20 km) and high‑capacity transport (thousands of tons per hour).
• Extremely Low Elongation
  Permanent elongation <0.25%; minimal tensioning required, reducing maintenance and enabling smaller‑diameter pulleys.
• Superior Impact & Tear Resistance
  Integrated steel‑rubber structure resists damage from sharp, heavy materials (e.g., rocks, coal); optional transverse steel/fiber reinforcement enhances tear resistance.
• Long Service Life
  Thick, high‑quality rubber covers resist aging, abrasion, and harsh environments; steel cords remain corrosion‑free, extending life to 5–15 years (2–3× longer than fabric belts).
• Good Troughability & Flexibility
  Flexible carcass adapts to trough idlers for stable material transport; excellent bending resistance for repeated pulley cycling.
• Reliable Splicing & Safety
  Vulcanized or mechanical splices maintain high strength; fire‑retardant/anti‑static grades meet underground coal mine safety standards.

• Mining & Coal: Long‑distance underground/overland transport of coal, ore, and minerals.
• Ports & Terminals: Loading/unloading bulk cargo (coal, grain, ore) with high capacity.
• Metallurgy & Steel: Transporting sinter, pellets, and hot slag.
• Power Plants: Handling coal, ash, and limestone in thermal power stations.
• Cement Plants: Conveying clinker, raw meal, and aggregates.

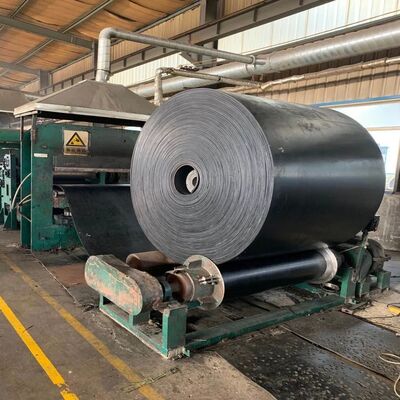

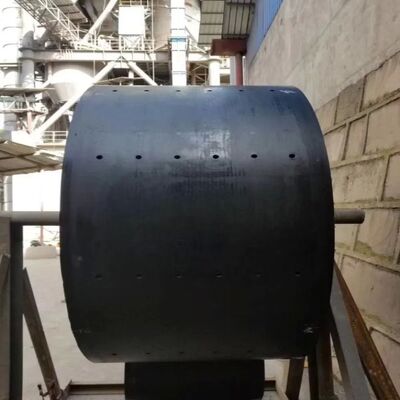

The Steel Cord Rubber Conveyor Belt is carefully packaged to ensure maximum protection during transportation and handling. Each belt is tightly rolled and wrapped with a durable plastic film to prevent moisture, dust, and damage. The ends of the belt are secured with heavy-duty steel straps to maintain the roll shape and facilitate easy loading and unloading.

For shipping, the packaged conveyor belts are loaded onto flatbed trucks or containers depending on the order size and destination. Wooden crates or pallets may be used for additional protection, especially for long-distance or overseas shipments. All shipments are accompanied by detailed documentation, including product specifications and handling instructions, to ensure safe delivery and proper installation upon arrival.
