Product Description:

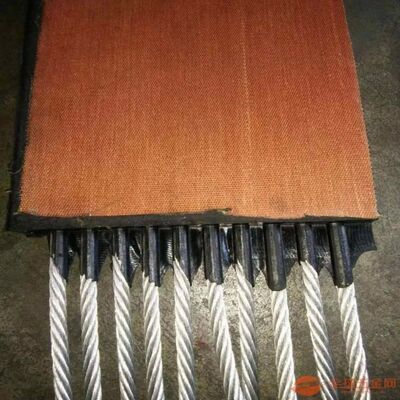

The Steel Cord Rubber Conveyor Belt is a high-performance industrial belt designed to meet the rigorous demands of modern material handling systems. Engineered with precision and durability in mind, this conveyor belt is ideal for applications requiring exceptional strength, flexibility, and resistance to wear and tear. Its core material consists of high tensile steel cords, which provide unparalleled tensile strength ranging from 630 to 5400 N/mm, ensuring reliable performance under heavy loads and continuous operation.
It is a premium solution for industries requiring a durable, high-strength conveyor belt capable of withstanding demanding operational conditions. Its combination of high tensile steel cord core material, customizable thickness and width, and compliance with international standards makes it a versatile and reliable choice. Whether used as a Bucket Elevator Belt or in other bulk material handling applications, this conveyor belt delivers outstanding performance, longevity, and cost-effectiveness.
Features:
- Extreme Tensile Strength: Handles the highest tension loads for long‑distance, single‑flight conveying without intermediate drives.
- Minimal Elongation: Requires very short take‑up travel and maintains consistent tension, reducing downtime and maintenance.
- Superior Adhesion: Steel cords are fully bonded to rubber, eliminating cord pull‑out and extending service life.
- Excellent Flex Fatigue Resistance: Performs reliably around small‑diameter pulleys, enabling compact conveyor design.
- Outstanding Impact & Tear Resistance: Absorbs heavy impacts and resists cutting from sharp materials.
- Uniform Tension Distribution: Balanced cord layout prevents belt wandering, edge wear, and premature failure.
- Versatile Environmental Resistance: Available in fire‑retardant, heat‑resistant, cold‑resistant, oil‑resistant, and acid/alkali‑resistant grades.
- Easy Splicing & Repair: Compatible with mechanical clamps and vulcanized splices for fast field maintenance.
Technical Parameters:
| Parameter |
Value Range |
Notes |
| Belt Width |
200 mm – 2500 mm |
Custom widths available |
| Belt Thickness |
12 mm – 30 mm |
Depends on cover grade and cord size |
| Steel Cord Diameter |
3.7 mm – 14.5 mm |
Matched to tensile class |
| Tensile Strength (ST Rating) |
ST630 – ST5400 kN/m |
Industry‑standard designation |
| Elongation at Break |
≤ 0.2% |
Minimal stretch under operating load |
| Abrasion Resistance (DIN) |
70 – 300 mm³ |
Customizable for highly abrasive materials |
| Operating Temperature |
-40°C to +120°C |
Special grades for extreme temps |
| Length per Roll |
10 m – 200 m |
Unlimited endless splicing on‑site |
| Standards |
GB/T 9770, DIN 22131, AS 1333, JIS K 6369 |
Global compliance |

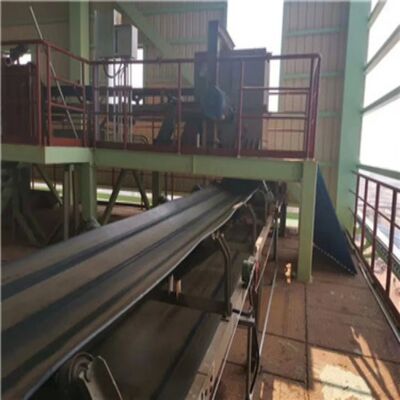

Applications:
MWIN Steel Cord Conveyor Belts are the preferred choice for:
- Mining: Coal, iron ore, copper, bauxite, and aggregates.
- Cement & Building Materials: Clinker, limestone, gypsum, and raw materials.

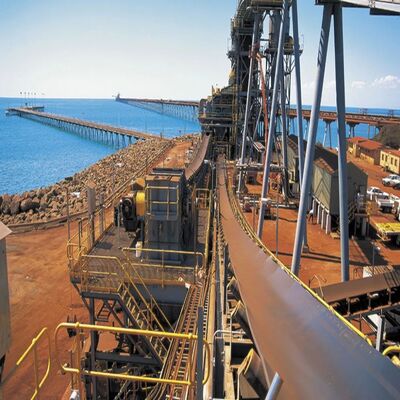

- Ports & Terminals: Long‑distance ship loading/unloading of bulk cargo.
- Power Plants: Coal and ash handling.
- Metallurgy: Sinter, ore, and slag conveyance.
- Quarries & Aggregates: High‑abrasion stone and gravel transport.
Packing and Shipping:
Packaging: The Steel Cord Rubber Conveyor Belt is carefully rolled and wrapped with protective plastic film to prevent moisture and dust contamination. Then load in the container or packed in export wooden pallet.
Shipping: The conveyor belts are shipped using reliable transportation methods including sea freight, air freight, or land transport depending on the destination and urgency. All shipments are accompanied by detailed documentation including packing lists, certificates of quality, and shipping invoices. We ensure timely delivery with proper handling to avoid any damage during transit, meeting customer schedules and expectations.
FAQ:
Q1: What is the brand and model number of the Steel Cord Rubber Conveyor Belt?
A1: The Steel Cord Rubber Conveyor Belt is branded MWIN and the model number is ST1250.
Q2: Where is the Steel Cord Rubber Conveyor Belt manufactured?
A2: This conveyor belt is manufactured in China.
Q3: What certifications does the MWIN Steel Cord Rubber Conveyor Belt have?
A3: The product is certified with ISO9001, ensuring it meets international quality management standards.
Q4: What is the minimum order quantity and price range for the Steel Cord Rubber Conveyor Belt?
A4: The minimum order quantity is 100 meters, with prices ranging from USD 20 to 150 per meter depending on specifications.
Q5: What are the payment terms and delivery time for orders of the MWIN Steel Cord Rubber Conveyor Belt?
A5: Payment can be made via T/T or L/C. Delivery time typically ranges from 7 to 30 working days.
Q6: How is the Steel Cord Rubber Conveyor Belt packaged and what is the monthly supply capacity?
A6: The conveyor belts are packed in export packaging to ensure safe shipment. The supply ability is up to 20,000 meters per month.
