Product Description:

The steel cord rubber conveyor belt (also called wire rope core conveyor belt) is a heavy‑duty rubber reinforcement belt that uses high‑tensile galvanized steel cords as the load‑bearing skeleton, embedded in a rubber carcass. It is engineered for long‑distance, high load, high speed material transportation, widely applied in mining, coal, ports, metallurgy, power plants, and chemical industries.

Features:

• Ultra‑High Tensile Strength
  Withstands heavy loads (up to 10,000 N/mm), ideal for long‑distance lines (5–20 km) and high‑capacity transport (thousands of tons per hour).
• Extremely Low Elongation
  Permanent elongation <0.25%; minimal tensioning required, reducing maintenance and enabling smaller‑diameter pulleys.
• Superior Impact & Tear Resistance
  Integrated steel‑rubber structure resists damage from sharp, heavy materials (e.g., rocks, coal); optional transverse steel/fiber reinforcement enhances tear resistance.
• Long Service Life
  Thick, high‑quality rubber covers resist aging, abrasion, and harsh environments; steel cords remain corrosion‑free, extending life to 5–15 years (2–3× longer than fabric belts).
• Good Troughability & Flexibility
  Flexible carcass adapts to trough idlers for stable material transport; excellent bending resistance for repeated pulley cycling.
• Reliable Splicing & Safety
  Vulcanized or mechanical splices maintain high strength; fire‑retardant/anti‑static grades meet underground coal mine safety standards.

Common Types:

• General Type: For ordinary bulk materials (coal, ore, sand); wear‑resistant, cost‑effective.
• Fire‑Retardant (FR) Type: For coal mines, tunnels, or high‑fire‑risk areas; meets ISO 340/EN 14973, anti‑static and flame‑resistant.

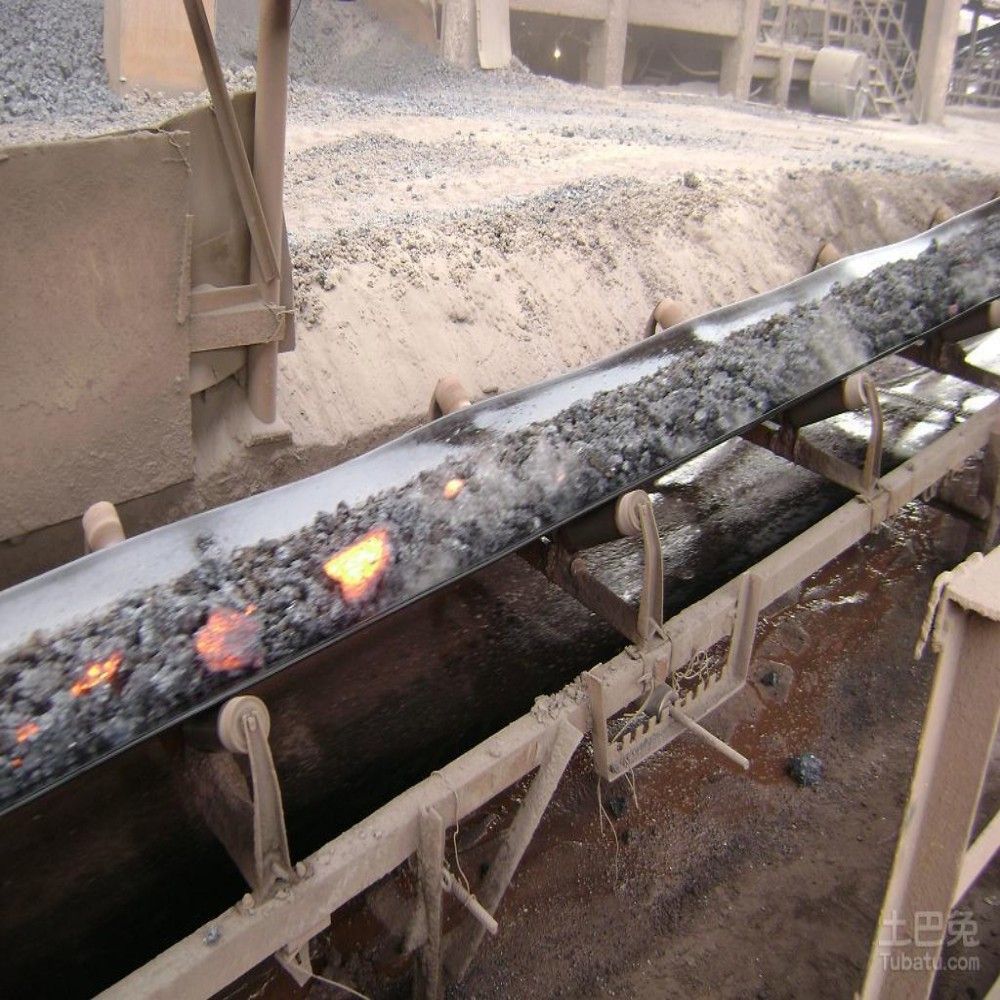

• Heat‑Resistant Type: For high‑temperature materials (sinter, clinker, hot ash); withstands 150–250°C.
• Cold‑Resistant Type: For low‑temperature environments (–40°C to –60°C); rubber remains flexible without cracking.
• Oil‑Resistant Type: For oily/greasy materials; resists oil penetration and swelling.
• Acid‑Alkali Resistant Type: For chemical plants, fertilizer, or corrosive materials.

Applications:

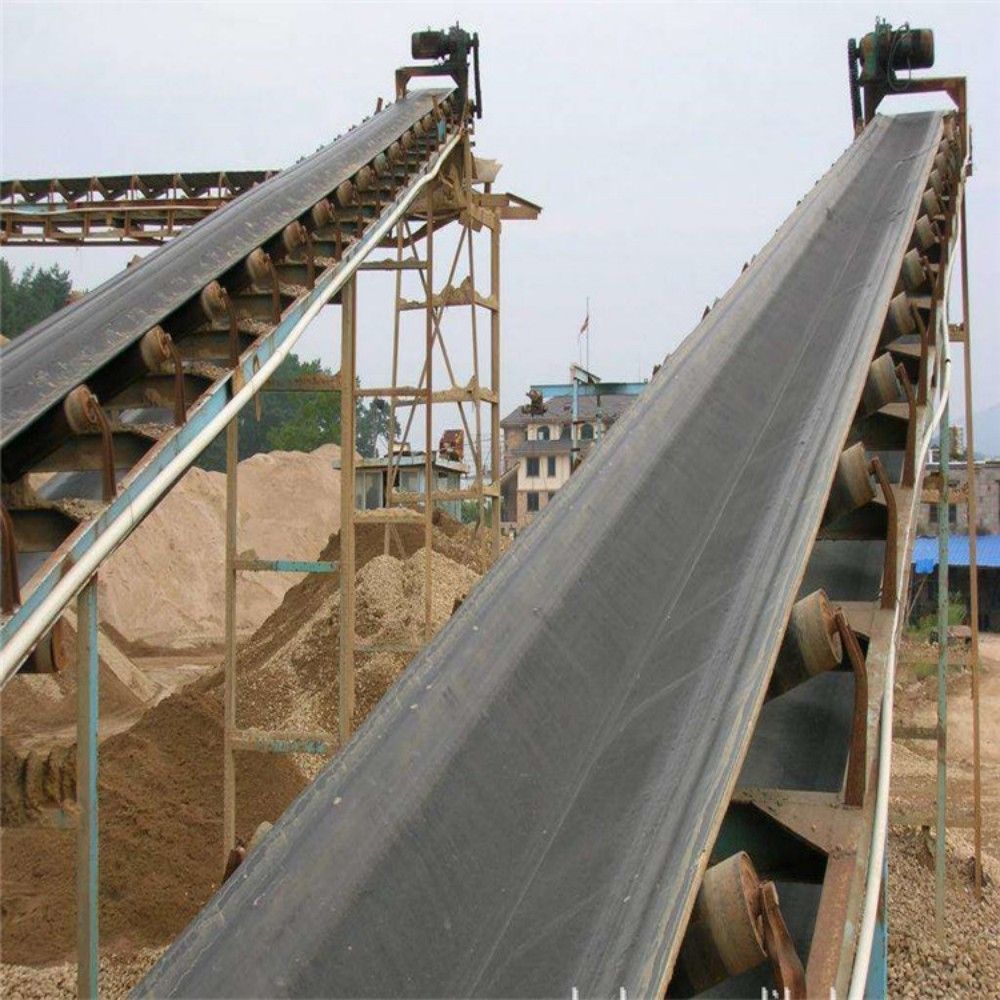

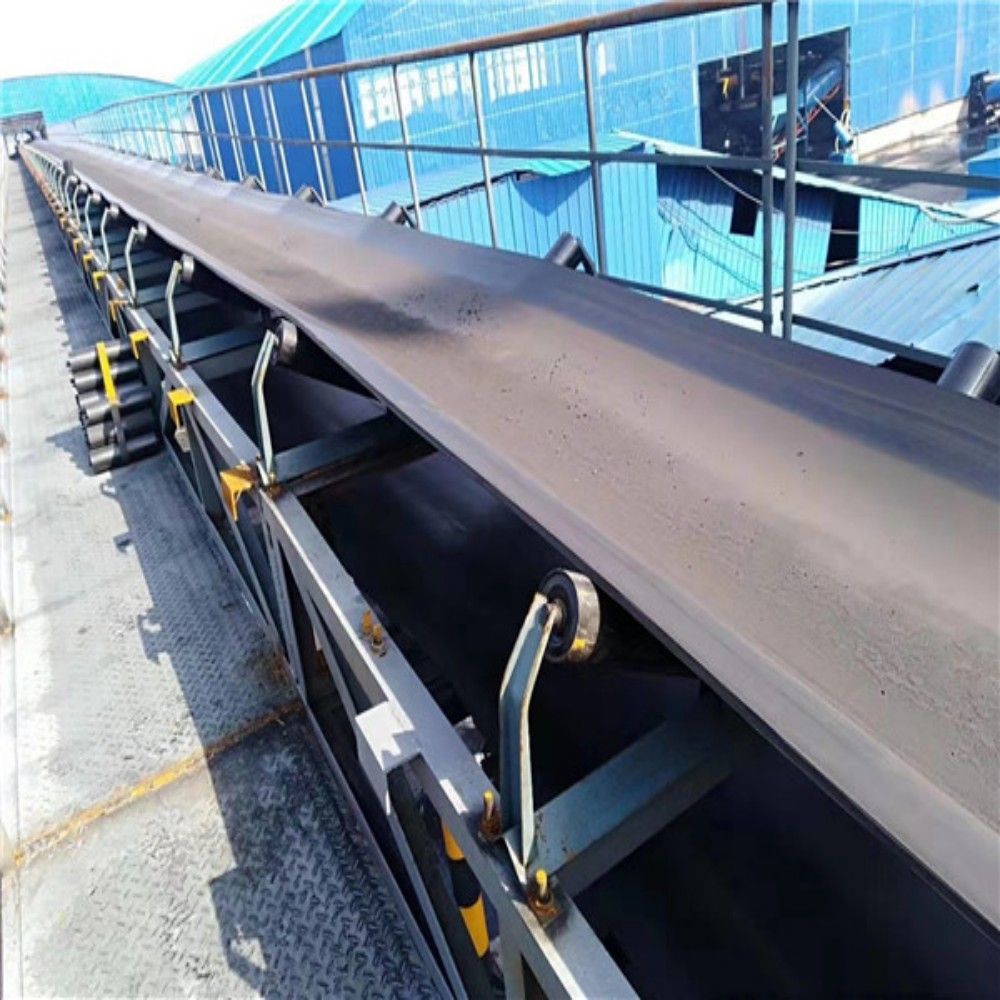

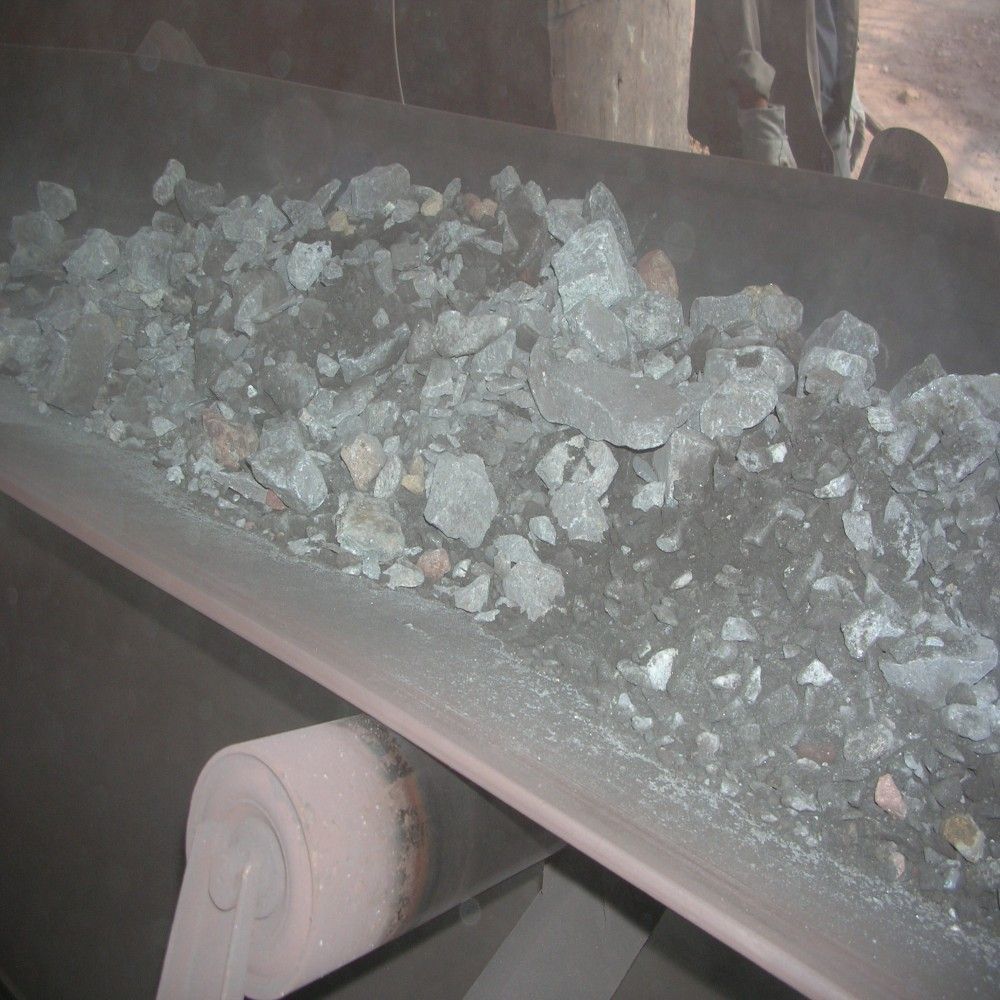

• Mining & Coal: Long‑distance underground/overland transport of coal, ore, and minerals.
• Ports & Terminals: Loading/unloading bulk cargo (coal, grain, ore) with high capacity.
• Metallurgy & Steel: Transporting sinter, pellets, and hot slag.
• Power Plants: Handling coal, ash, and limestone in thermal power stations.
• Cement Plants: Conveying clinker, raw meal, and aggregates.

Why Choose MWIN Steel Cord Belts?

• Manufacturing Excellence: State‑of‑the‑art production lines in Shandong, China, with strict quality control.
• Customization: Tailored rubber compounds, cord constructions, and dimensions to match your exact operating conditions.
• Global Compliance: Meets all major international standards for safety and performance.
• Long Service Life: Premium materials and precision engineering reduce total cost of ownership.

Technical Support: Full engineering assistance for belt selection, installation, splicing, and maintenance.
