High Tensile Continental Nylon Canvas Conveyor Belt for Stone Crusher Plant

Product Description:

MWIN is a professional manufacturer of industrial rubber conveyor belts and bulk material handling solutions based in Qingdao, China. Our Nylon Canvas Core Rubber Conveyor Belt (NN belt) is a multi-ply fabric-reinforced conveyor belt, with the carcass constructed from high-strength impregnated nylon (polyamide) canvas, laminated and bonded together, then covered top and bottom with premium compound rubber. Manufactured by calendering, shaping and vulcanization, it is engineered for medium-to-long distance, high-load and high-speed bulk material transportation in heavy industries.

Features:

• High tensile strength & light carcass: The belt body is thinner and lighter compared with cotton canvas belts, while delivering much higher breaking strength. It reduces tension load on conveyor frames and motors.
• Excellent impact & tear resistance: Great at absorbing shock from falling lump materials at transfer points, lowering risk of canvas damage.
• Superb troughability: Flexible and easy to form deep trough on troughed idlers, increasing material carrying volume and minimizing spillage.
• Outstanding flex resistance: Tolerates repeated bending around pulleys, less prone to delamination, cracking and layer separation, extending service life.
• Strong interlayer adhesion: Stable bonding between nylon canvas and rubber cover, resistant to ply separation under continuous heavy-duty operation.
• Customizable cover rubber grades: We tailor rubber compounds to match different working environments.

Technical Parameters:

• Carcass Grade: NN100, NN125, NN150, NN200, NN250, NN300, NN400
• Number of Plies: 2 ~ 8 plies
• Belt Width: 300 mm ~ 2200 mm (custom widths acceptable)
• Cover Rubber Thickness: Top cover: 1.5 ~ 8 mm; Bottom cover: 1 ~ 4.5 mm
• Working Temperature: -10 ℃ ~ +300 ℃ (special cold-resistant version down to -40 ℃)
• Standards: Manufactured complying with GB/T7984, DIN22102, ISO, CE and other international norms.

Applications:

MWIN NN nylon canvas conveyor belt transports non-corrosive lump, granular, powder and bulk solids. Widely adopted in:

• Coal mines, quarries & mineral mining
• Cement plants, building materials
• Ports & terminals bulk cargo handling
• Metallurgy & steel plants
• Power plants
• Grain, sand and aggregate processing

Packing and Shipping:

Product Packaging:

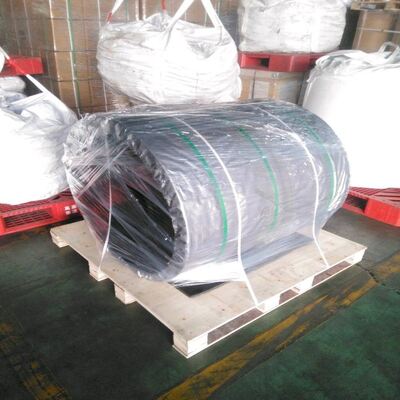

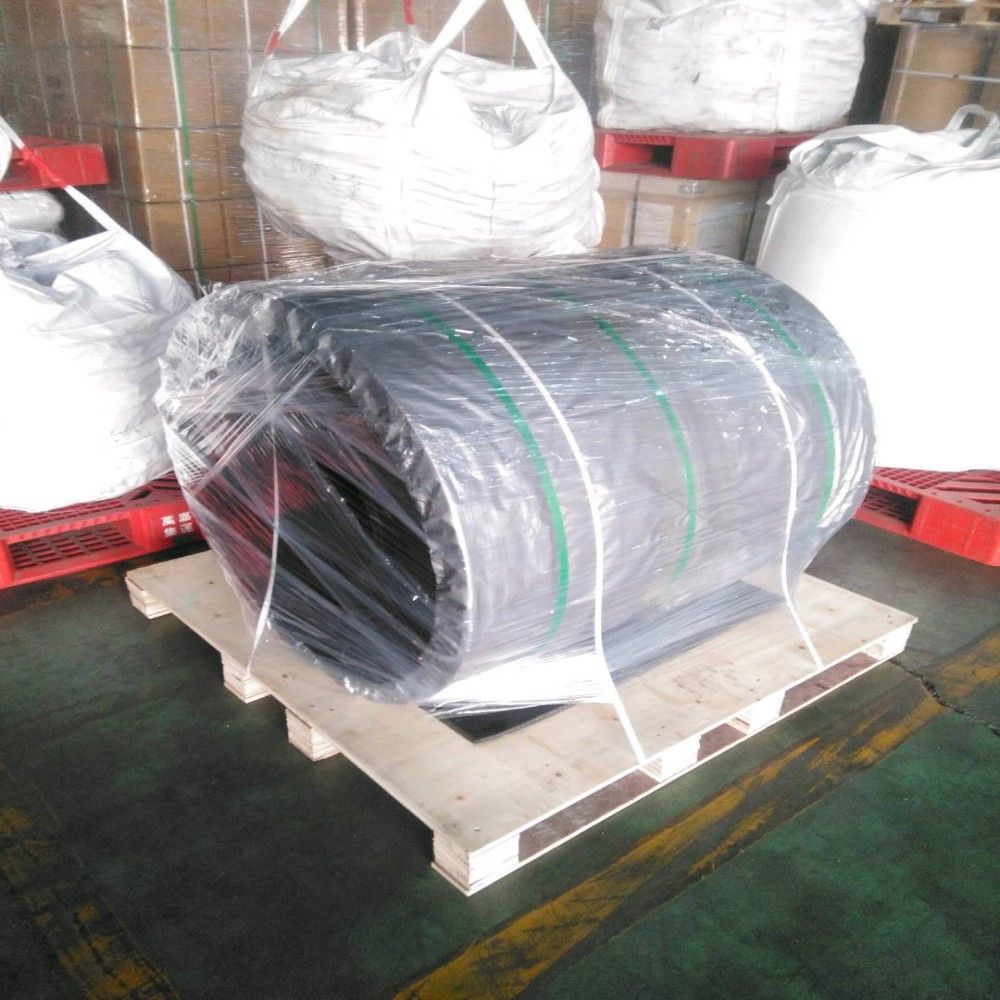

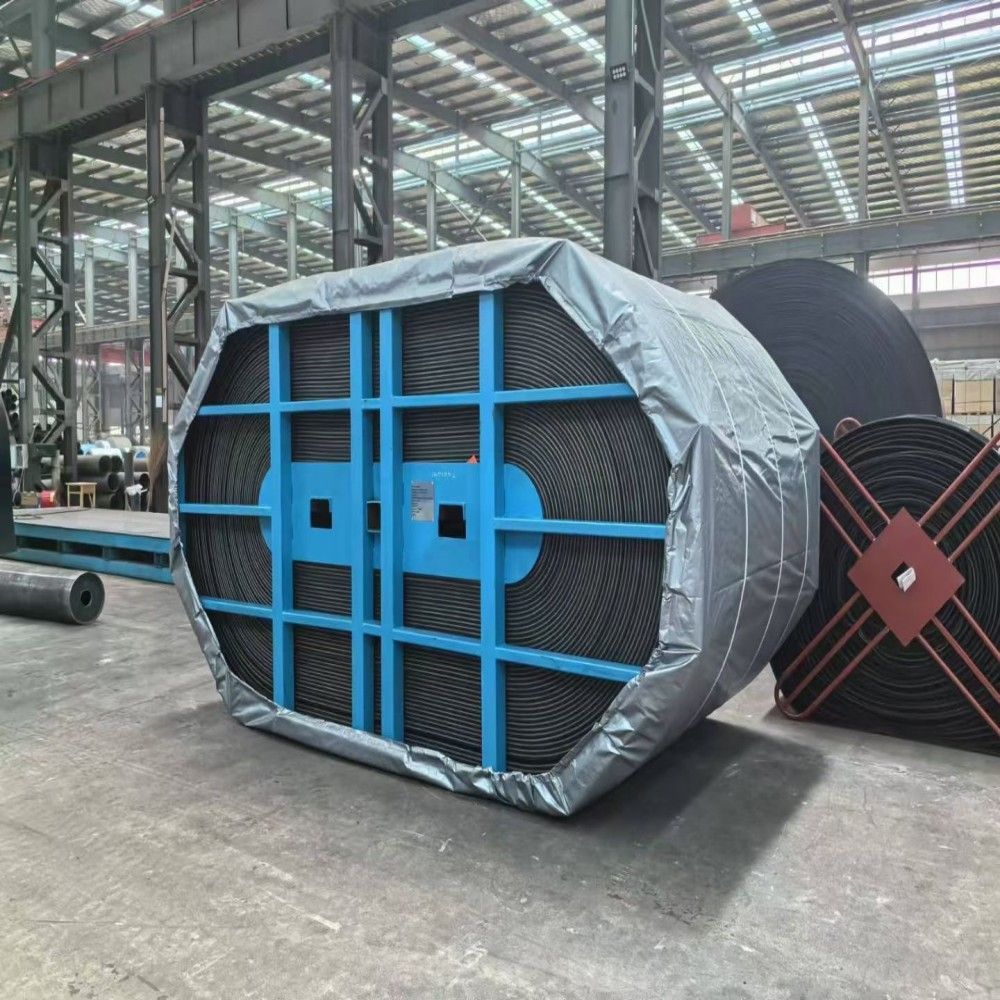

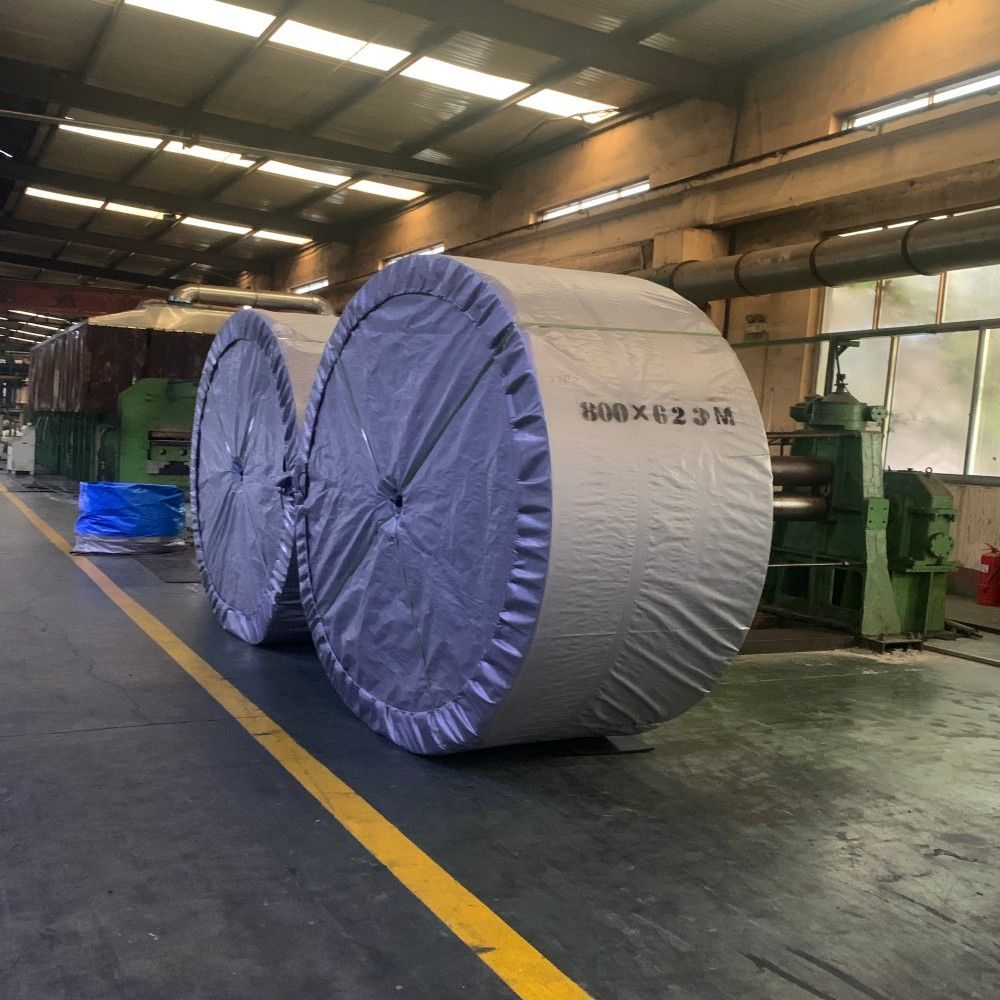

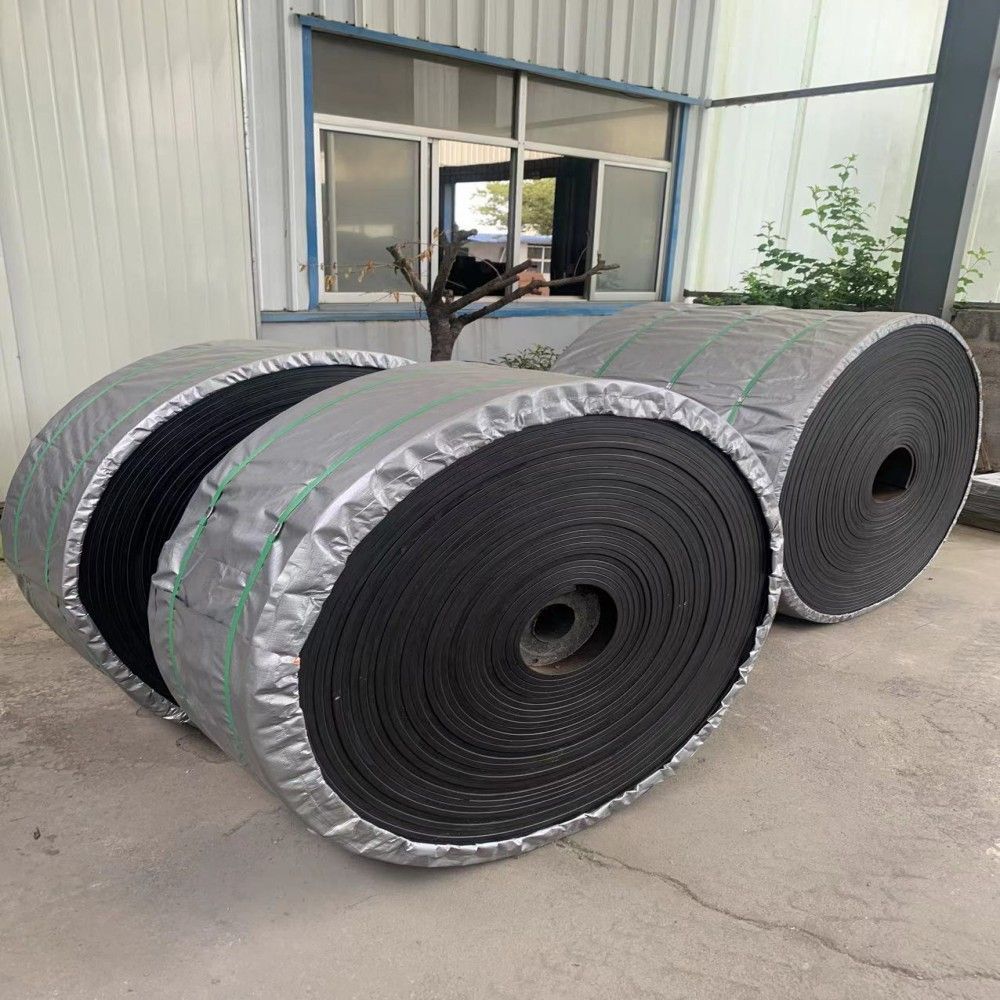

The Nylon Fabric Conveyor Belt is carefully rolled and wrapped with protective plastic film to prevent moisture and dust contamination during storage and transportation. Each roll is then secured with strong straps or bands to maintain its shape and integrity. For added protection, the rolls are placed on sturdy wooden pallets or inside custom-built crates depending on the order size and shipping requirements.

Shipping:

Shipping of the Nylon Fabric Conveyor Belt is carried out using reliable logistics partners to guarantee timely and safe delivery. The product can be shipped via sea freight, air freight, or land transportation based on customer preferences and destination. Each shipment is accompanied by detailed documentation including packing lists, certificates of quality. We also provide tracking services so customers can monitor their orders in real time until they reach their facility.
