OEM Chevron Pattern Conveyor Belt Featuring Abrasion Resistance for Bulk Material Conveying

Product Description:

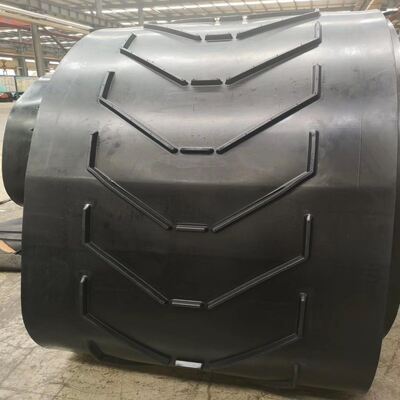

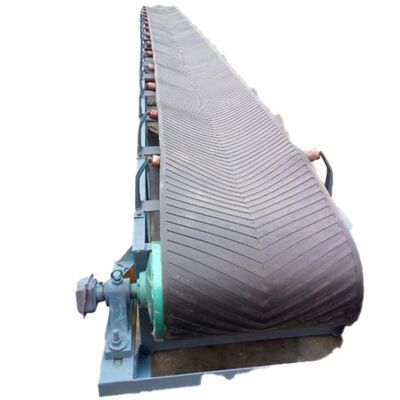

MWIN chevron conveyor belt (also called cleated belt or pattern belt) is a fabric carcass conveyor belt with V-shaped cleats moulded directly into the top cover during vulcanization. The raised pattern grips the material and prevents it from slipping or rolling back, so a conveyor that would normally be limited to around 16–18° can run comfortably at 30° to 40° depending on the material — without the cost of a corrugated sidewall belt.

Because the cleats are formed from the cover rubber itself, they will not peel, delaminate or tear off the way glued or welded-on cleats do. The belt still runs on conventional idlers, pulleys and standard scrapers, so there is no need to modify your existing conveyor. It is the most economical way to gain conveying angle on sand and gravel, coal, grain, biomass, wood chips, recycled aggregate and mobile or portable conveyors.

Features:

With 18 years of conveyor belt manufacturing and export experience, an in-house R&D team and our own rubber laboratory, MWIN does not simply sell a stock pattern — we match the carcass, cover grade and cleat geometry to the material you actually convey.

• One-piece moulded cleats — vulcanized together with the top cover, so cleat failure is virtually eliminated

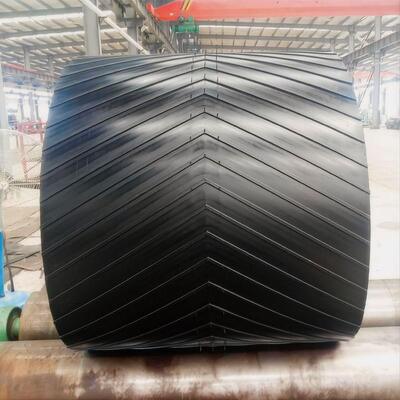

• Patterns to suit the duty — Open V, Closed V, Y, Multi-V and round stud, cleat heights from 5 mm to 25 mm, pitch 125–500 mm
• Carcass and cover options — EP or NN fabric, 2–5 plies; cover grades Y, X, W to DIN 22102, with oil-resistant and heat-resistant compounds available on request
• Standards — DIN 22102 · GB/T 7984 · RMA · AS 1332
• OEM & custom builds — belt width 300–1600 mm, cleat profile and pitch adjustable to your drawing; we also supply complete conveyor accessories

Every order is testable before shipment, and our engineers will confirm the final specification with you rather than shipping a "close enough" belt.

Technical Parameters:

Applications:

1. Cement Industry: The most widely used scenario, applied to vertical bucket elevators for raw meal, cement clinker and finished cement lifting.
2. Mining Industry: Vertical lifting of iron ore, copper ore, non-ferrous metal ore, mineral powder and coal raw materials.
3. Thermal Power Industry: Lifting and conveying of raw coal, fly ash, desulfurized limestone powder and other materials.
4. Chemical & Building Materials Industry: Vertical transportation of granular chemical raw materials, fertilizer particles, building materials powder and other bulk materials.

Customization:

MWIN offers customizable Chevron Pattern Conveyor Belts designed to meet the specific needs of your Industrial Belt Conveyor and Conveyor Belt System applications. Our model EP150, manufactured in China and certified with ISO90001, ensures high-quality and reliable performance. We provide OEM pattern types, including smooth or patterned surfaces, with belt thickness options ranging from 6 to 20mm, tailored to your requirements.

Our Chevron Pattern Conveyor Belts are oil, abrasion, and weather resistant, making them ideal for demanding environments. The honeycomb design enhances grip and efficiency in material handling. We maintain a supply ability of 20,000 meters per month with a minimum order quantity of 100 meters, priced competitively between USD 8 to 50 per meter.

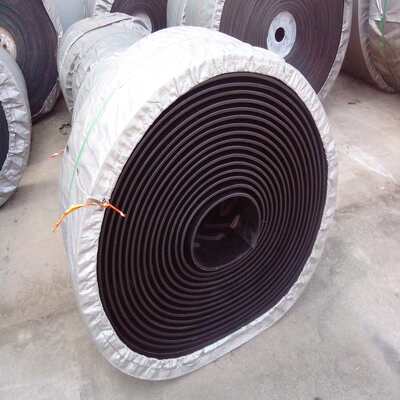

Packaging is done in secure export packages to ensure product safety during transit. Delivery times range from 7 to 30 working days, and we accept flexible payment terms including T/T and L/C. Trust MWIN, a reputable manufacturer, for your Honeycomb Conveyor Belt needs to optimize your conveyor belt systems with durable and customizable industrial solutions.
