Customizable Corrugated Belt Conveyor Adjustable Speed Bulk Material Belt Conveyors

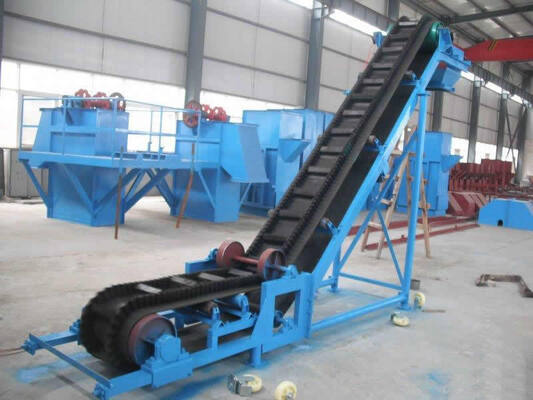

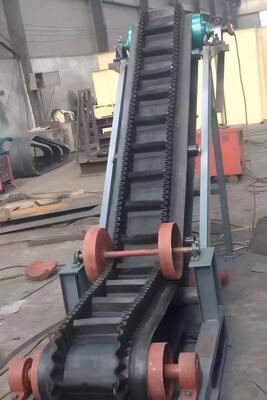

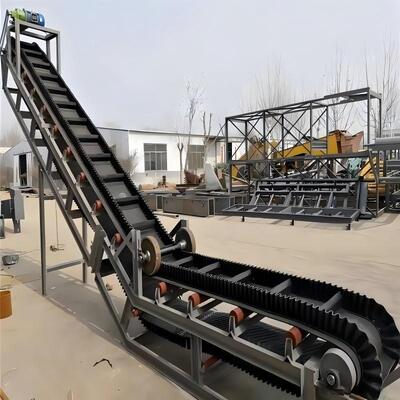

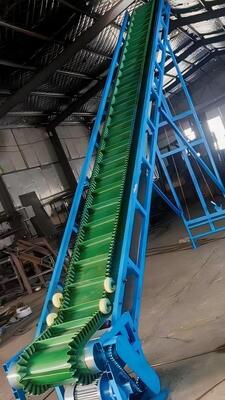

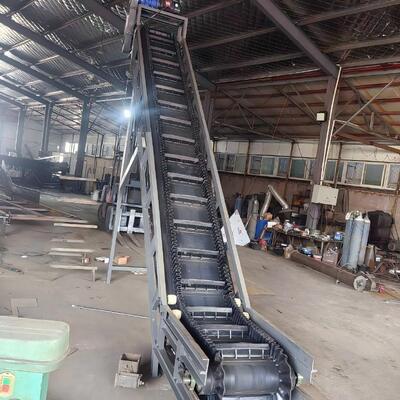

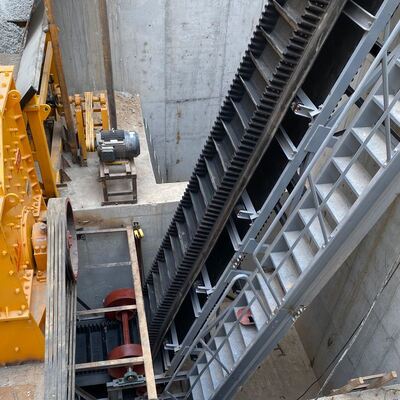

A Sidewall Belt Conveyor (also known as a Corrugated Sidewall Belt Conveyor, Flexowell Conveyor, or Vertical Conveyor) is a specialized and highly efficient bulk material handling system designed to move materials at steep inclines or even vertically. It overcomes the fundamental limitation of traditional flat conveyor belts, which are typically restricted to inclines below 20 degrees.

The system integrates a standard rubber conveyor belt with flexible, continuous corrugated sidewalls that are vulcanized onto the belt edges. Transverse cleats (or flights) are attached at regular intervals between the sidewalls, creating a series of sealed pockets or compartments. These pockets securely contain the material, preventing rollback and spillage during high-angle transport.

• Base Belt: The carcass provides tensile strength using rugged, flexible fabric or steel cord belt designed to handle significant tension and flexing.
• Corrugated Sidewalls: Made of specially formulated, flexible rubber molded into a corrugated pattern for excellent rigidity and flexibility.
• Cleats (Flights): Cross bars that form the back of each pocket, sized and spaced according to material size and incline angle.
• Specialized Pulleys and Idlers: Specially designed components to accommodate the belt's unique profile for smooth transitions.

• Steep to Vertical Incline: Convey materials at angles from 30° to 90° (vertical), saving significant floor space
• Continuous, High-Capacity Flow: Provides smooth, continuous material flow with high capacity in a single compact unit
• Single-Belt System: Eliminates transfer points, reducing dust, spillage, and maintenance requirements
• Material Versatility: Handles free-flowing granules, powders, lumps, and abrasive or hot materials
• Space Efficiency: Ideal for confined spaces and applications requiring significant elevation changes

• Mining & Quarrying: Transporting crushed ore, limestone, or aggregates
• Power Plants: Moving coal, biomass, or ash to bunkers or silos
• Cement Industry: Handling raw meal, clinker, and finished cement
• Chemical & Fertilizer Plants: Conveying granules, powders, and pellets
• Ports & Terminals: Loading/unloading ships and material transfer
• Food & Grain Processing: Moving grains and food products with clean handling

• L-Type: Horizontal feed section leading into inclined section (most common)
• S-Type: Horizontal tail, inclined section, and horizontal discharge for gentler transitions
• Z-Type: Two vertical bends allowing loading and discharge at same elevation
