EP200 Corrugated Sidewall Conveyor Belt for Steep Angle Bulk Material Handling
MWIN Corrugated Sidewall Conveyor Belt is a high-performance, heavy-duty conveyor belt engineered for large-inclination (0°-90°) and vertical bulk material handling. Manufactured by Qingdao MWIN Industry And Trade Co., Ltd., it integrates a robust base belt, flexible corrugated sidewalls, and reinforced transverse cleats to form enclosed material-carrying compartments, enabling efficient, spillage-free conveying in space-constrained environments. It is widely used in mining, cement, coal, ports, grain, and chemical industries, replacing traditional bucket elevators and complex multi-transfer systems.
Structure & Components
MWIN's corrugated sidewall belt features a three-part integrated design, bonded via high-temperature vulcanization for exceptional structural integrity:
Base Belt (Carrying & Traction Core)
- Reinforcement: Textile (polyester/nylon) or steel cord carcass, with tensile strength ranging from EP100 to ST2000 kN/m, supporting heavy loads and long conveying distances
- Rubber Compounds:
- Top Cover: Wear-resistant, impact-resistant rubber (abrasion loss: 80-250 mm³) to withstand coarse, abrasive materials
- Bottom Cover: Low-friction rubber for smooth operation on pulleys and idlers
- Edge Protection: Thickened side rubber to prevent tearing and environmental damage

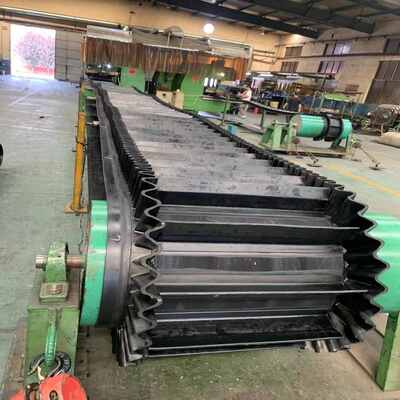

Corrugated Sidewalls (Skirts)
- Design: Wave-shaped (sinusoidal, W-type) rubber sidewalls, flexible enough to bend around pulleys while forming a vertical barrier to contain materials
- Specifications: Height from 50 mm to 400 mm, thickness 6-15 mm; available in standard and high-strength grades for heavy-duty applications
- Function: Prevent lateral spillage and enable steep-angle conveying up to 90°

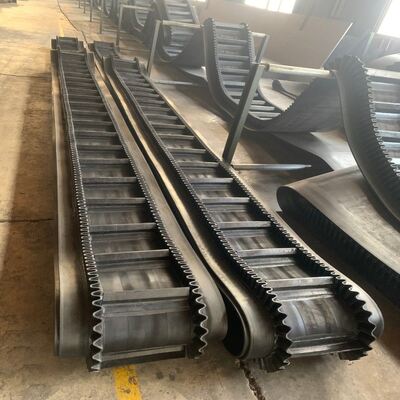

Transverse Cleats (Cross Partitions)
- Types: T-type, C-type, TC-type (tapered), and vertical cleats, customized for material characteristics and conveying angle
- Height: 50 mm to 400 mm, matching sidewall height to form sealed material compartments
- Bonding: Vulcanized directly to the base belt and sidewalls for high shear strength, resisting material impact and sliding
Technical Dimensions
| Base Belt Width B (mm) | Sidewall Height H(mm) | Cleat Height H1(mm) | BF (mm) | BR (mm) | Belt Width (mm) |
|---|
| 300 | 40 | 35 | 25 | 180 | 35 |
| 300 | 60 | 55 | 50 | 120 | 40 |
| 300 | 80 | 75 | | | |
| 400 | 60 | 55 | 50 | 180 | 60 |
| 400 | 80 | 75 | | | |
| 400 | 100 | 90 | | | |
| 500 | 80 | 75 | 50 | 250 | 75 |
| 500 | 100 | 90 | | | |
| 500 | 120 | 110 | | | |
| 650 | 100 | 90 | 50 | 350 | 100 |
| 650 | 120 | 110 | | | |
| 650 | 160 | 140 | 75 | 300 | |
| 800 | 120 | 110 | 50 | 460 | 120 |
| 800 | 160 | 140 | 75 | 410 | |
| 800 | 200 | 180 | | | |
| 1000 | 60 | 140 | 75 | 550 | 150 |
| 1000 | 200 | 280 | | | |
| 1000 | 240 | 220 | | | |
| 1200 | 160 | 140 | 75 | 690 | 180 |
| 1200 | 200 | 180 | | | |
| 1200 | 240 | 220 | | | |
| 1200 | 300 | 280 | 105 | 630 | |
| 1400 | 200 | 180 | 75 | 830 | 210 |
| 1400 | 240 | 220 | | | |
| 1400 | 300 | 280 | 105 | 770 | |
| 1400 | 400 | 360 | | | |
| 1600 | 200 | 180 | 75/105 | 970 | 240 |

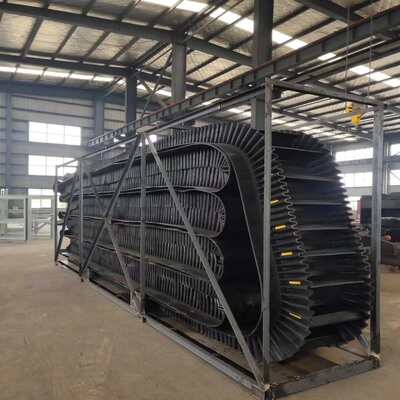

Packaging & Shipping
PP waterproof cloth + Steel core + Side plastic sheet. Can be packed as per customer requirement. Usually can load 10-20 rolls into one 40HC container.
Delivery Time: Shipped in 15-30 days after payment

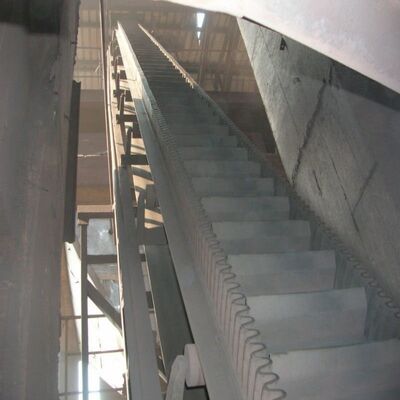

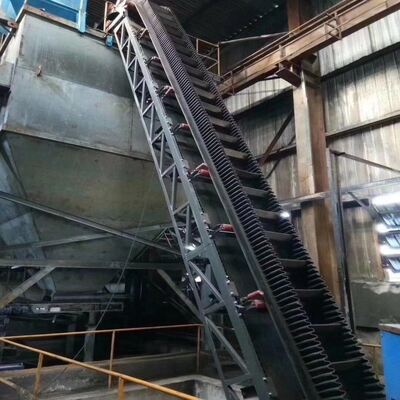

Industrial Applications
Corrugated sidewall conveyor belts are used in industries where materials need to be transported at steep angles or vertically:
- Mining: Transporting coal, ore, and other minerals
- Agriculture: Handling grains, seeds, and fertilizers
- Construction: Moving sand, gravel, and cement
- Recycling: Transporting waste materials and recyclables
- Food Processing: Handling bulk food products like sugar, flour, and grains
- Power Plants: Transporting ash and other byproducts
Manufacturer Profile
Qingdao MWin Rubber Products Co., Ltd. is a manufacturer specializing in industrial rubber products, particularly material handling system solutions. The company is dedicated to the R&D, production, and sales of various high-performance rubber conveyor belts and related equipment. Its core business focuses on providing reliable and efficient bulk material handling products for heavy industries such as mining, ports, power generation, building materials, and grain.
We maintain high quality standards with efficient service, ensuring all products meet customer requirements. Our facility includes a separate laboratory with complete testing equipment to guarantee product quality for all samples and production batches.
