Industrial Steep Angle Sidewall Cleated Conveyor Belt For Material Handling Conveyor Belts

60 Meters
MOQ
USD30-100/Meter
Price
Industrial Steep Angle Sidewall Cleated Conveyor Belt For Material Handling Conveyor Belts
Features Gallery Product Description Ratings & Review Chat Now
Features
Specifications
Belt Width: 500mm To 2500mm
Belt Thickness: 6mm To 70mm
Sidewall Height: 60mm To 300mm
Cleat Height: 50mm To 280mm
Core Material: Polyester/Nylon Fabric
Application: Inclined Or Vertical Bulk Material Conveying
Highlight:

industrial steep angle conveyor belt

,

cleated sidewall conveyor belt

,

material handling conveyor belts
Basic Infomation
Place of Origin: China
Brand Name: MWIN
Certification: ISO9001
Model Number: S240
Payment & Shipping Terms
Packaging Details: Packed in Export Cage
Delivery Time: 10-25 days
Payment Terms: T/T,L/C At sight
Supply Ability: 2000 Meters per Month
Product Description
Industrial Steep Angle Sidewall Cleated Conveyor Belt For Material Handling Conveyor Belts
MWIN Corrugated Sidewall Conveyor Belt is a high-performance, heavy-duty conveyor belt engineered for large-inclination (0°-90°) and vertical bulk material handling. Manufactured by Qingdao MWIN Industry And Trade Co., Ltd., it integrates a robust base belt, flexible corrugated sidewalls, and reinforced transverse cleats to form enclosed material-carrying compartments, enabling efficient, spillage-free conveying in space-constrained environments. It is widely used in mining, cement, coal, ports, grain, and chemical industries, replacing traditional bucket elevators and complex multi-transfer systems.

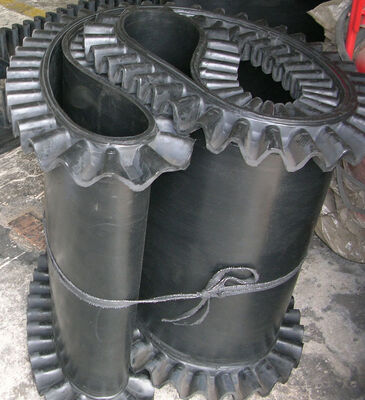

Industrial Steep Angle Sidewall Cleated Conveyor Belt For Material Handling Conveyor Belts 0

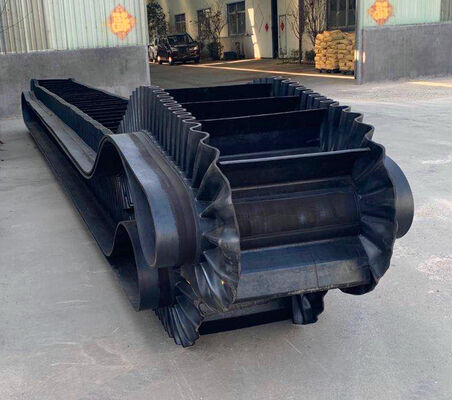

Structure & Components
MWIN's corrugated sidewall belt features a three-part integrated design, bonded via high-temperature vulcanization for exceptional structural integrity:

Base Belt: The main body, similar to a standard conveyor belt but with higher transverse rigidity to support sidewalls and cleats.

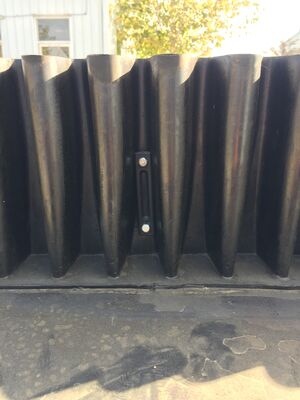

Corrugated Sidewalls: Flexible, wave-shaped rubber edges on both sides. They form containment pockets and can flexibly expand or compress when passing around pulleys.

Transverse Cleats: Rubber partitions fixed between the sidewalls to vertically support materials.


Common Cleat Types

T-type: For angles ≤ 40°

C-type: For angles > 40° with free-flowing materials

TC/TCS-type: For angles > 60° (near-vertical/vertical) and sticky or heavy loads

Technical Dimensions
Base Belt Width B (mm) Sidewall Height H(mm) Cleat Height H1(mm) BF (mm) BR (mm) Belt Width (mm)
300 40 35 25 180 35
300 60 55 50 120 40
300 80 75


400 60 55 50 180 60
400 80 75


400 100 90


500 80 75 50 250 75
500 100 90


500 120 110


650 100 90 50 350 100
650 120 110


650 160 140 75 300
800 120 110 50 460 120
800 160 140 75 410
800 200 180


1000 60 140 75 550 150
1000 200 280


1000 240 220


1200 160 140 75 690 180
1200 200 180


1200 240 220


1200 300 280 105 630
1400 200 180 75 830 210
1400 240 220


1400 300 280 105 770
1400 400 360


1600 200 180 75/105 970 240

Packaging & Shipping
PP waterproof cloth + Steel core + Side plastic sheet. Can be packed as per customer requirement.
Delivery Time: 10-25 days after deposit.

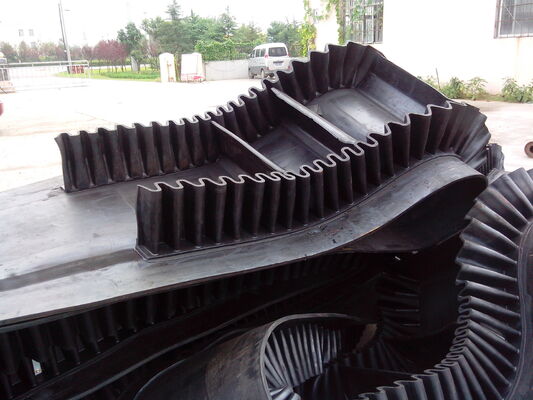

Industrial Steep Angle Sidewall Cleated Conveyor Belt For Material Handling Conveyor Belts 1
Industrial Applications

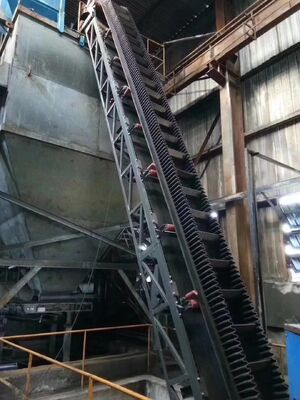

Industrial Steep Angle Sidewall Cleated Conveyor Belt For Material Handling Conveyor Belts 2
Corrugated sidewall conveyor belts are used in industries where materials need to be transported at steep angles or vertically:

· Mining & Metallurgy: Coal, ore, limestone

· Building Materials: Cement, sand, gravel

· Power Plants: Coal, ash

· Ports & Shipping: Bulk cargo handling

· Chemicals & Grain: Fertilizers, grains, salts

· Construction & Waste: Solid waste, recycled materials
