Name: Industrial Natural Rubber Sheet Heavy Duty Rubber Sheet For Machinery Protection
Brand: Qingdao Mwin Industry And Trade Co., Ltd.
SKU: TGD400
Price: 10.00 USD
Availability: InStock

Features Gallery Product Description Ratings & Review Chat Now

Features

Specifications

Product Name: Rubber Sheet

Density: 1.2-1.4g/cm3

Surface Finish: Smooth / Textured / Embossed

Tensile Strength: 5-20Mpa

Resistance: Oil Resistant / Chemical Resistant / Weather Resistant / Abrasion Resistant

Package: Export Box

Basic Infomation

Place of Origin: China

Brand Name: MWIN

Certification: ISO9001

Model Number: TGD400

Payment & Shipping Terms

Packaging Details: Packed in Export wooden Box

Delivery Time: 7-20 days

Payment Terms: T/T,L/C At sight

Supply Ability: 10000 pieces per month

Gallery

Industrial Natural Rubber Sheet Heavy Duty Rubber Sheet For Machinery Protection

Product Description

OEM Industrial Rubber Sheet 5Mpa - 20Mpa Heavy Duty Rubber Sheet For Machinery Protection

OEM Thickness Width Rubber Sheet for Machinery Protection And Industrial Application

Definition and Basic Composition

The rubber sheet is a versatile, flat elastomeric product made from natural or synthetic rubber (e.g., NBR, EPDM, silicone, neoprene), often reinforced with fabric or metal for strength. Produced via vulcanization, it offers exceptional elasticity, sealing, shock absorption, and resistance to wear, water, chemicals, and temperature extremes.

Specifications

Item	Details
Product Name	Rubber Sheet / Industrial Rubber Sheet
Definition	Flexible flat elastomer material produced by mixing, calendaring, vulcanizing rubber polymers and additives; used for sealing, cushioning, wear resistance, insulation and protection
Main Materials	Natural Rubber (NR), SBR, NBR (Nitrile), CR (Neoprene), EPDM, Silicone, Viton (FKM), Butyl (IIR)
Common Hardness	Shore A 40°-90° (customizable)
Standard Thickness	1mm, 2mm, 3mm, 5mm, 6mm, 8mm, 10mm, 12mm, 20mm, etc.
Standard Size	1m1m, 1m2m, 1.2m5m, 1.2m10m, 1.5m*10m, roll length 10m/20m/50m
Key Properties	High elasticity, tensile strength, tear resistance; waterproof, shock absorption; oil / chemical / heat / cold / weather resistance (depends on rubber type)
Surface Types	Smooth, textured, cloth-imprinted, ribbed, diamond-pattern
Typical Applications	Gaskets and seals; anti-vibration pads; conveyor lagging; waterproofing; tank lining; flooring mats; electrical insulation
Working Temperature	General: -20°C to +80°C Silicone/Viton: -60°C to +250°C
Industries	Mining, construction, automotive, marine, food, electronics, engineering machinery

Common Types and Their Primary Uses

Different base polymers create sheets for specific applications:

Natural Rubber (NR) Sheets: High elasticity and tensile strength. Used in gaskets, seals, and impact-absorbing pads.
Nitrile Rubber (NBR) Sheets: Excellent resistance to oils, fuels, and solvents. Common in automotive and machinery gaskets, fuel hoses.
Neoprene (CR) Sheets: Good weather, ozone, and moderate oil/fire resistance. Used in outdoor seals, weather stripping, and corrosion linings.
Ethylene Propylene Diene Monomer (EPDM) Sheets: Excellent weather, ozone, steam, and water resistance. Widely used in automotive weather seals, roofing membranes, and outdoor gaskets.
Silicone Rubber Sheets: High & low-temperature resistance (-60°C to 230°C), food/medical grade options, good electrical insulation. Used in food processing, medical devices, high-temperature gaskets, and insulation.
Fluorocarbon/Viton® (FKM) Sheets: Exceptional heat and chemical resistance. Used for demanding seals in aerospace, chemical, and automotive industries.

Main Applications Across Industries

Rubber sheets are critical components in:

Sealing and Gasketing: Creating static seals between flanges, covers, and housings in pipelines, machinery, and automotive assemblies.
Lining and Protection: Lining tanks, chutes, and hoppers in mining, chemical processing, and agriculture to protect against abrasion and corrosion.
Insulation: Serving as electrical insulation mats, thermal pads, and soundproofing layers in construction and electronics.
Flooring and Matting: Used for anti-fatigue mats, anti-slip surfaces, and vibration-damping pads in industrial and commercial settings.
Diaphragms and Membranes: Acting as flexible barriers in pumps, valves, regulators, and roofing systems.
Custom Fabrication: Cut, punched, or molded into specific parts like washers, seals, bushings, and rollers.

Standard Forms and Specifications

Rubber sheets are typically available in:

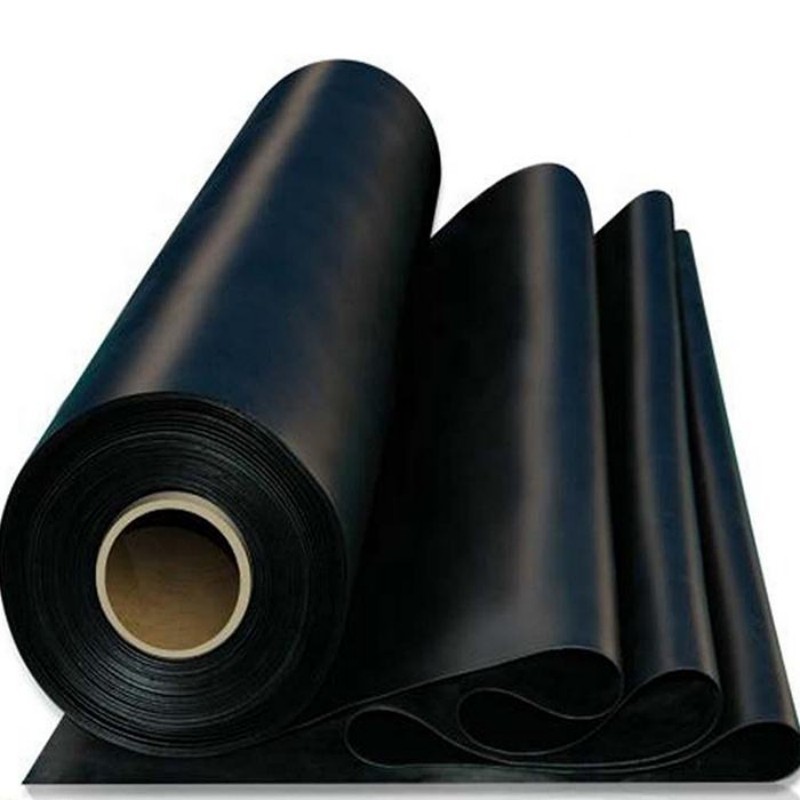

Rolls or Flat Sheets of standard width and length
Various standard thicknesses (e.g., 1mm to 50mm or more)
Different hardness levels (measured in Shore A durometer, e.g., 40°A to 90°A)
Surface finishes: smooth, fabric-impressed, or textured

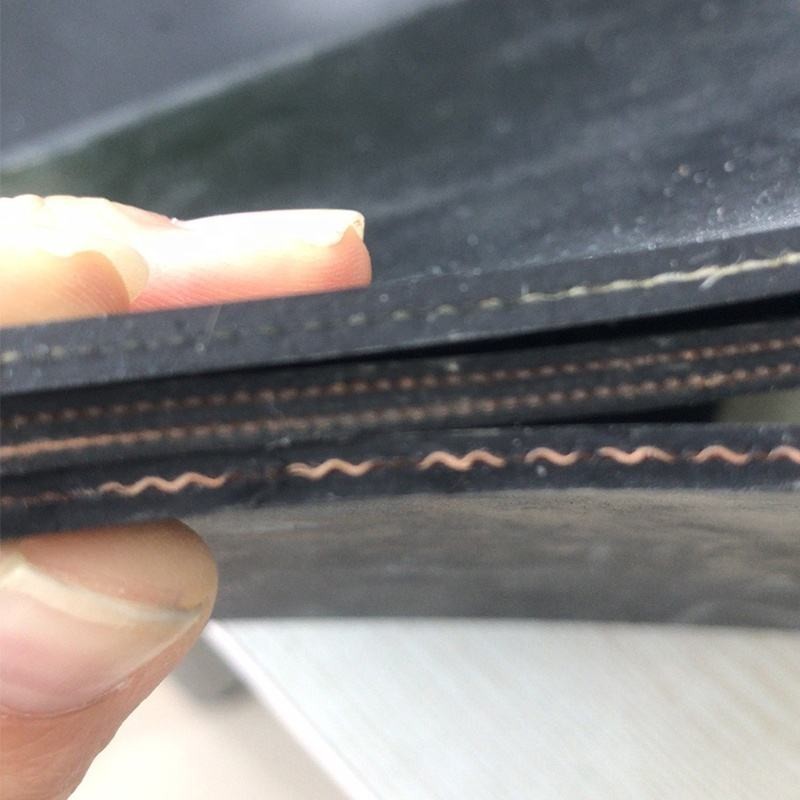

May be reinforced with fabric or metal inserts for added strength

Selection Considerations

Choosing the right rubber sheet involves evaluating:

Chemical/Medium Exposure: What fluids, oils, or solvents will it contact?
Temperature Range: Required operating minimum and maximum temperatures
Pressure and Mechanical Stress: Load, compression, abrasion, or tearing forces
Environmental Factors: Exposure to sunlight, ozone, oxygen, or weathering
Regulatory Requirements: Need for FDA, NSF, UL, or other certifications
Physical Properties: Required hardness, tensile strength, elongation, and elasticity
